Why Verso CF 2500 V C5

High-capacity single unit

1100 m³/h rated

Moisture recovery standard

Enthalpy core

F7 filter included

Urban air quality

Ultra-low electric draw

0.38 Wh/m³

Large open-plan spaces

Commercial-grade flow

Passive summer cooling

Bypass damper standard

Passivhaus compatible

Certified components

European manufacturing

10+ year parts supply

Airflow Range ~1100 m³/h rated Adjustable via variable-speed EC motor. Typical commercial/large-home range: 300–850 m³/h. C5 humidity control auto-adjusts.

Heat Recovery Efficiency 81% Enthalpy core. Passivhaus certified. Heat and moisture both recovered from exhaust air.

Specific Electric Power (SEP) 0.38 Wh/m³ EC motor. ErP 2018 A++ energy class. Ultra-low running cost — ~£40–60/year at normal commercial use.

Sound Pressure Level 18 dB (low speed) | 21 dB (high) Acoustic damping via larger unit mass and careful rotor design. Low-speed operation keeps sound minimal even at high airflow.

Filter Stages F7 activated-carbon (supply, standard) "F" designates F7 supply filter as standard. Recommended for urban environments and all commercial applications. Extract: G4 dust.

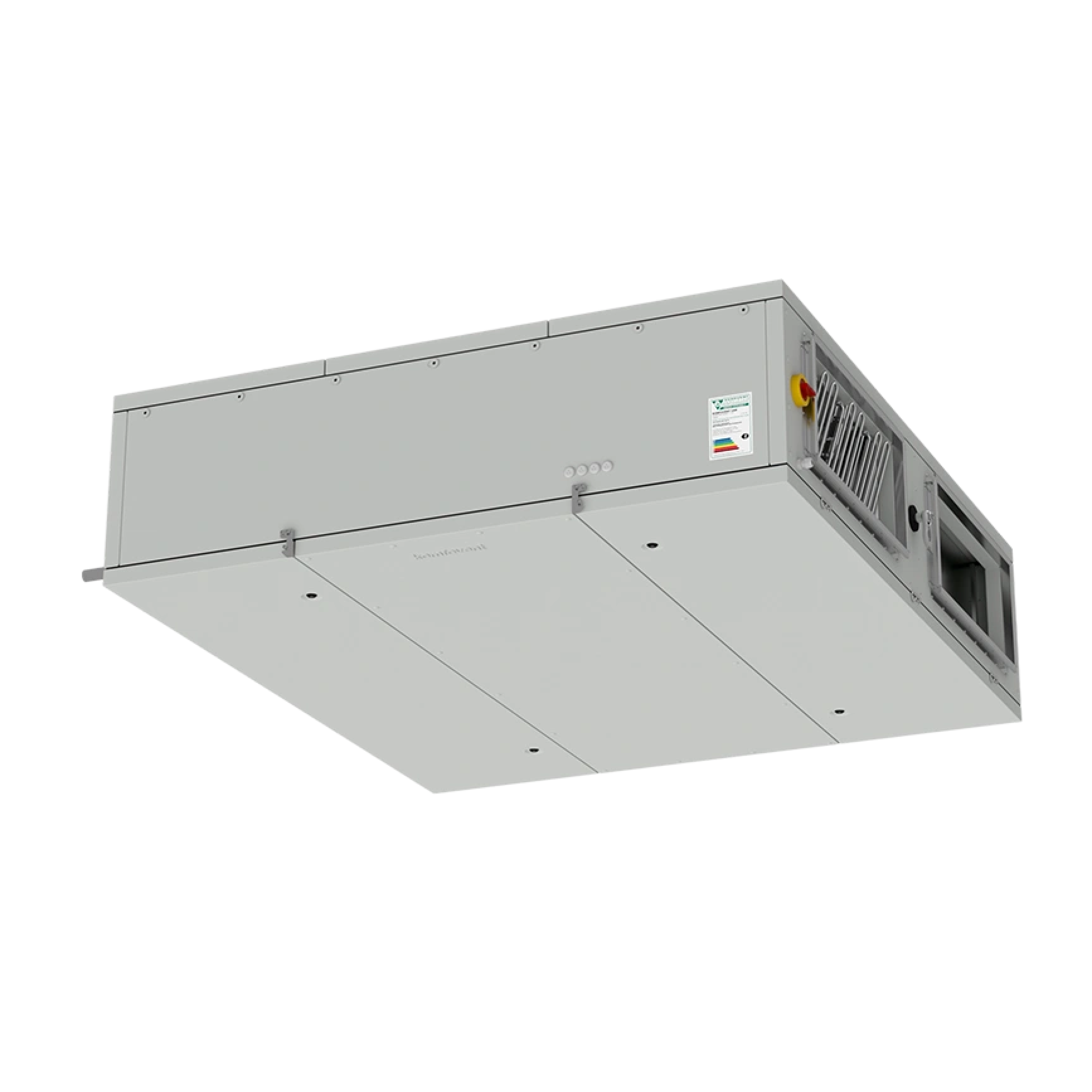

Installation Type Horizontal ceiling mount "CF" = ceiling-floor orientation. Larger footprint (~1600 × 800 mm). Duct connections on top and sides. Ideal for large new-builds and commercial spaces with substantial ceiling voids.

Control Variant C5 Humidity sensor with basic demand control. Simple wall-mounted 3-speed selector. No Modbus (for building automation, consult for bespoke control).

Building Coverage ~600–1200 m² Suitable for large family homes (5+ bedrooms), multi-unit residential, and small commercial (offices, retail, classrooms up to ~1000 m²).

Humidity-demand control

Built-in sensor adjusts motor speed automatically. Ramping: low speed at <40% RH, medium at 40–60%, high at >60%. Reduces unnecessary fan runtime in dry periods.

Manual override

Wall-mounted 3-speed selector. High-capacity boost function for peak occupancy periods. C5 remembers user preference after override timer expires.

Summer bypass damper

Manual or thermostatic. When outdoor air is warmer than indoor, damper opens to bypass the heat exchanger. Fresh air enters without cooling from the core — critical for comfort in large open-plan commercial spaces.

BMS integration option

C5 is the standard control variant. For building automation, CO₂ demand control, or remote monitoring, contact CleverBloom to discuss bespoke control packages.

01 Location Suspended ceiling void, loft above insulation, or accessible basement ceiling. Unit lies horizontally. Height clearance required: ~500 mm above and below for inspection, filter access, and acoustic treatment.

02 Duct connections Top-mounted or side-mounted ducts depending on void geometry. Supply air delivered to all occupied spaces via grilles. Extract from kitchens, bathrooms, utility areas via multiple points.

03 Electrical 230 V, single or 3-phase. Power draw at rated flow (~150–200 W at mid-speed). May require dedicated circuit. Control wiring for humidity sensor.

04 Fit day process Phone consultation → site survey (for large commercial, recommended) → fit day (unit mounted, ductwork integrated, controls tested, acoustic treatment installed) → use walkthrough and staff training.

Supply-side Filter F7 activated carbon (standard, "F" variant) F7 is the default for Verso CF 2500 F C5. Filters dust, pollen, PM2.5, and odours. Recommended for all urban and commercial locations.

Extract-side Filter G4 dust (large cartridge) Protects the enthalpy core from lint, kitchen grease, and facility-specific contaminants. Change every 3–6 months in high-use commercial settings.

Filter Change Interval 3–12 months (application-dependent) Residential: 6–12 months. Commercial kitchens or high-occupancy spaces: 3–6 months. EC motor load increases visibly when filters clog. Visual inspection hatches aid condition assessment.

Parts Availability 10+ year guarantee Komfovent maintains parts stock across active models. Large cartridges for the CF 2500 are always available from CleverBloom or Komfovent directly.

Technical specifications

Airflow Range ~1100 m³/h rated Adjustable via variable-speed EC motor. Typical commercial/large-home range: 300–850 m³/h. C5 humidity control auto-adjusts.

Heat Recovery Efficiency 81% Enthalpy core. Passivhaus certified. Heat and moisture both recovered from exhaust air.

Specific Electric Power (SEP) 0.38 Wh/m³ EC motor. ErP 2018 A++ energy class. Ultra-low running cost — ~£40–60/year at normal commercial use.

Sound Pressure Level 18 dB (low speed) | 21 dB (high) Acoustic damping via larger unit mass and careful rotor design. Low-speed operation keeps sound minimal even at high airflow.

Filter Stages F7 activated-carbon (supply, standard) "F" designates F7 supply filter as standard. Recommended for urban environments and all commercial applications. Extract: G4 dust.

Control Variant C5 Humidity sensor with basic demand control. Simple wall-mounted 3-speed selector. No Modbus (for building automation, consult for bespoke control).

Building Coverage ~600–1200 m² Suitable for large family homes (5+ bedrooms), multi-unit residential, and small commercial (offices, retail, classrooms up to ~1000 m²).
