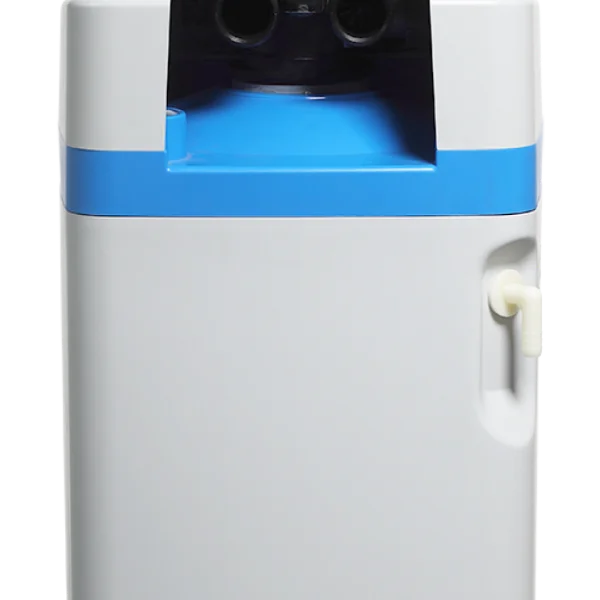

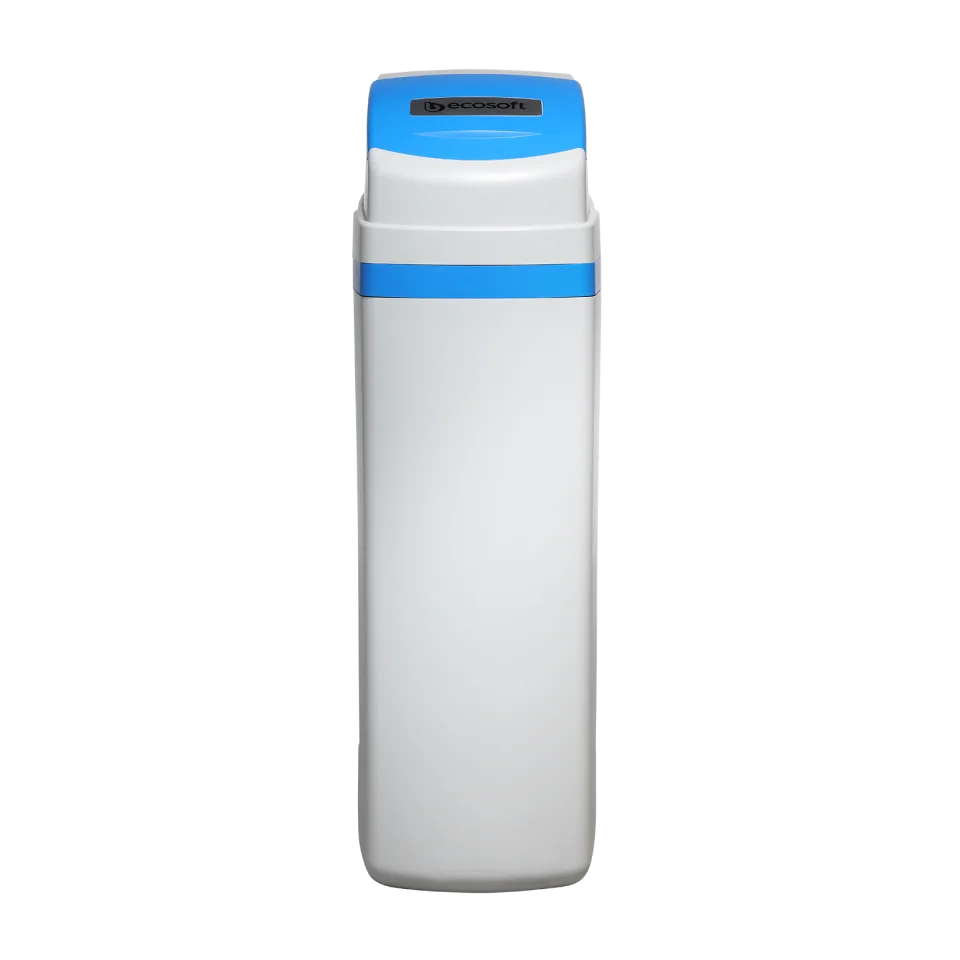

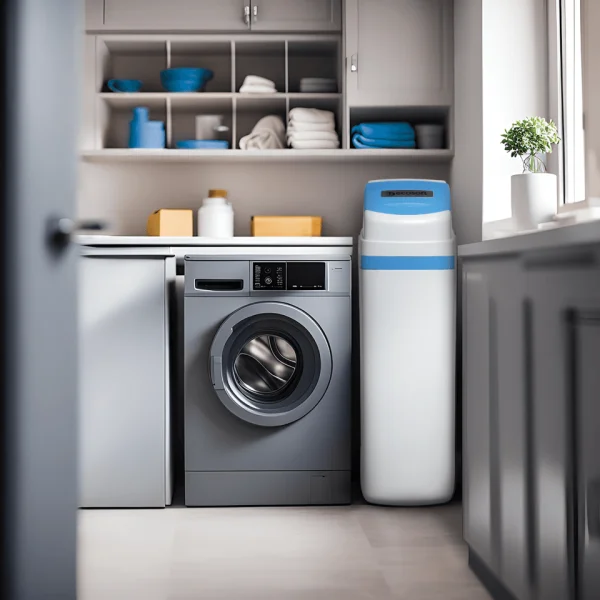

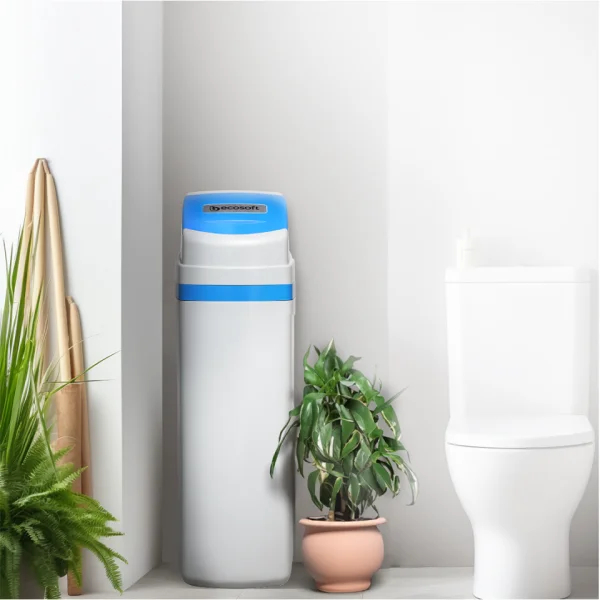

Arctic Blue 370 Water Softener

• Flow rate: Operating — 2.2 m³/h; Maximum — 2.8 m³/h

• Quantity of DOWEX® HCR-S/S — 37 L
• Volume capacity* — 7.5 m³
• Usage of salt per regeneration** — 3.7–6.0 kg
• Usage of water per regeneration — 0.37 m³
• Duration of regeneration — 80–110 minutes
• Pressure drop in service mode — 0.5 bar
• Inlet pressure — 2–6 bar
• Electrical requirements — 230 V, 50 Hz
• Power consumption — 30 W
• Inlet/outlet pipe connections — 1’’

*for hardness at 5 meq/L (250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Feed water requirements

• Hardness — 15 meq/L (750 mg/L CaCO₃)
• Iron — 0.2 mg/L
• Manganese — 0.05 mg/L
• Required level of purification of sediment particles — 100 μm
• Initial water temperature — +4…+30 °С

Options:

• Inline bypass assembly
• Inline external mixing valve
• Motorized No Hard Water Bypass Valve for bypass shutoff during regeneration
• Microswitch (regeneration activated)
